Audi A6 Air Conditioning Repair
When Mr K brought his car to RS Autotechnik in Dursley for its regular service, he mentioned that the Audi A6 air conditioning had stopped blowing cold air. He suspected it might just need a re-gas, a common assumption when cooling performance drops, but wanted the experts to take a closer look.
During our service checks, the team confirmed that the refrigerant level was fine and the system was fully sealed. Yet the air conditioning still refused to work. That told us this wasn’t a typical maintenance issue. Something more complex was preventing the system from switching on.
What followed was a detailed investigation that combined experience, precision, and specialist Audi knowledge to uncover the real cause behind the failure.
Is your Audi A6 AC not working? Read on to see how the story unfolded for our client.
Audi A6 Air Conditioning Repair: Our Initial Investigation
After the service visit, Mr K returned to RS Autotechnik in Dursley so we could carry out a dedicated diagnostic evaluation on the air conditioning fault. During our earlier checks, we had already confirmed that the refrigerant level was correct and there were no visible leaks. Yet the system still refused to produce cold air.
So with the air conditioning re-gas ruled out, we set about locating the problem. Using our professional diagnostic equipment, we ran a full system scan. The results revealed one fault code:
- 00256 – Air Conditioning Pressure/Temperature Sensor (G395): No Signal/Communication
Also known as the G395 pressure temperature sensor, this small component monitors the pressure and temperature of the refrigerant inside the air conditioning system. The data it sends helps the system decide when it’s safe to run the compressor and produce cold air. If that information stops getting through, the air conditioning won’t operate at all, which started to explain why Mr K’s A/C system had shut down.
With the refrigerant level confirmed and the mechanical side of the system checked, our technicians concluded that the fault had to be linked to either a defective G395 pressure temperature sensor or a problem within the wiring that connects it.
The next step was to carry out deeper testing to pinpoint exactly where the signal was being lost.
Audi A6 Air Conditioning Fault: The Root Cause
With the initial checks complete, our next step was to uncover exactly where the air conditioning system had lost communication with its G395 pressure temperature sensor.
Using the Right Data and Tools
To guide our next tests, we accessed Audi’s official information and wiring diagrams — the electrical equivalent of a road map. These detailed blueprints show how every component is connected: where voltage is supplied, how each part is earthed, and how the sensor sends data along a single communication wire that links it to the rest of the system.
Using an oscilloscope — a specialist tool that lets us see live electrical signals — our technician tested each of the three wires leading to the sensor:
- Power supply: Voltage was present and within the correct range.
- Earth: The ground connection was solid and performing as expected.
- Signal line: No data signal could be detected.
That missing signal told us that the sensor wasn’t communicating with the rest of the system, even though it had both voltage and ground.
Comparing Signals Across the System
To double-check, we compared this result with another sensor on the same communication line. Its signal was healthy and active, proving that the control module was sending information correctly. That meant the problem was somewhere in the wiring between that point and the air conditioning pressure sensor. There was something upstream on the LIN communication line preventing the sensor’s signal from reaching the system.
Tracing the Break
Following the wiring route step by step, we tested for signal strength at key connection points along the entire path of the cable, from its starting point near the vehicle’s control module, right to the front of the car. The signal remained strong up to a connector located behind the interior panel on the passenger side, meaning the fault had to lie further forward, in the section of wiring that runs over the nearside front wheel arch and beneath the headlamp.

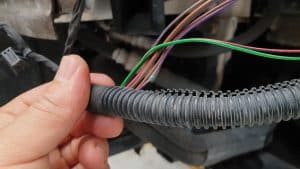

When we carefully opened the protective wiring sleeve, the cause revealed itself: we found a damaged wire hidden inside a group of cables within the corrugated protection tube. Moisture had crept in and damaged the copper strands. That corrosion had broken the communication path, leaving the air conditioning system unable to receive pressure information from the G395 pressure temperature sensor.
With the damaged wire now located, we’d found the root cause of the fault — the next step was to put the repair into action.
Audi AC Wiring Repair – Restoring the Air Conditioning System
With the fault confirmed, our next step was to complete the Audi AC wiring repair and protect the cables against future damage. Before carrying out any work, we picked up the phone to Mr K to explain exactly what we’d found and outline our repair plan. Once he was happy with our recommendation, we got the go-ahead to begin the work.
Accessing the Fault Area
The damaged section of wiring was tucked inside a protective sleeve running through the nearside front wheel arch and beneath the headlamp.
- As part of the technical evaluation, we had already carefully removed the outer protective covering of the wiring bundle and exposed the affected cable.
- This gave us a clear view of the wiring defect and the space needed to carry out the fix.
Preparing and Repairing the Wiring
Once the affected area was exposed, our technician repaired line with Audi’s wiring standards:
- Removed the corroded section of wire on both sides of the damage to ensure only clean copper remained.
- Installed a replacement length of matching-gauge automotive wire.
- Secured the joints with correctly crimped and sealed connectors to prevent future moisture ingress.
- Checked the circuit continuity to confirm a strong, stable connection throughout.
Testing the Repair
After the repair, it was time to recheck the system:
- Using the oscilloscope again, we confirmed that clear communication signals were now being transmitted and that the serial data was once again being passed correctly through the system.
- We reconnected the G395 pressure temperature sensor and cleared the stored fault code.
- With communication restored, the air conditioning compressor reactivated and began producing cold air immediately.
- A final diagnostic scan confirmed no remaining fault codes.
With that, the repair was complete and the air conditioning system was fully functional again.
G395 Pressure Temperature Sensor Repair – A Precise Fix and a Happy Customer
For Mr K, the outcome was clear: his Audi A6’s air conditioning was fully restored. What began as a frustrating lack of cold air during a routine service ended with the system performing exactly as it should: cool, consistent, and reliable again.
Behind the successful outcome was the detailed, methodical work of our technicians at RS Autotechnik in Dursley. Drawing on years of diagnostic experience, specialist training, and qualifications, they followed the evidence step by step, testing each section of wiring, and proving the fault beyond doubt.
It’s a process that demands both advanced understanding and precise technique, knowing exactly how to interpret what the technology reveals. That professional skill meant the issue was identified and resolved efficiently, saving Mr K from unnecessary parts costs and giving him confidence that his A6 had been repaired to the highest professional standard.
This case highlights the value of genuine diagnostic expertise: when complex systems fail, it’s not guesswork that restores them, but qualified technicians applying structured, logical testing to find the truth.
RS Autotechnik – Your Experts for Audi A6 Air Conditioning Repair
When our technicians were faced with this complex Audi A6 air conditioning repair, we brought every part of our expertise into play. Careful diagnostic work, precise testing, and Audi-level system knowledge all combined to uncover the true cause of the issue.
That structured process is what sets RS Autotechnik apart. Every complex fault we diagnose, from LIN communication sensor faults to hidden wiring defects, is handled with the same level of precision, care, and technical understanding.
