BMW Oil Leak Repair
Mrs P’s BMW continued to drive normally. There were no obvious changes in how it behaved day to day.

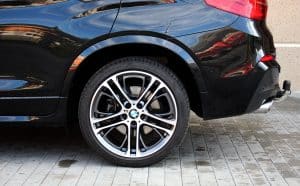

But what concerned her was what she kept finding after the car had been parked… oil appearing beneath the rear of her BMW M40i.
She wasn’t sure how significant the issue was. The oil loss wasn’t huge, and the car continued to drive as normal, with no warning lights on the dashboard. Over time, however, the situation didn’t improve. The oil continued to appear in the same area, making it clear that the problem needed to be assessed.
If you’re not a trained technician, oil leaks can be difficult to diagnose. The point where oil becomes visible doesn’t always relate directly to the point of failure, because the oil can travel. Wanting the BMW checked professionally, Mrs P decided to have the vehicle assessed by a garage experienced in structured fault-finding.
Following a recommendation, she contacted RS Autotechnik, an independent BMW specialist garage supporting drivers across Dursley, Bristol, Tetbury, and Gloucester. The car was booked in for a technical evaluation so the source of the oil loss could be identified accurately and the appropriate BMW oil leak repair could be carried out.
BMW Oil Leak Repair: Gathering the Early Clues
When Mrs P brought her BMW M40i to RS Autotechnik, the starting point was a detailed conversation about what she had been noticing. We discussed when the oil first appeared, how consistently it had been showing up, and whether anything about the way the car drove had changed since then. This information helps guide the inspection by anchoring it in the customer’s experience rather than jumping straight to conclusions.
Once that context had been established, the BMW was raised so the underside could be inspected properly. Oil was present across the rear underside of the vehicle, and its appearance indicated that the leak was recent rather than leftover from previous work. This confirmed that oil loss was ongoing and required closer examination.
With the oil concentrated towards the rear of the vehicle, attention turned to the rear drivetrain and differential area. On the BMW M40i, components in this part of the drivetrain operate under constant load and rely on a stable oil supply, which makes accurate identification of any leak especially important at this stage.
The BMW was also checked for stored fault codes as part of the evaluation process. While some oil-related issues are accompanied by fault codes, others are not. Carrying out a scan helps rule out associated faults and provides a broader view of the vehicle’s condition. No fault codes were recorded in the scan.
Although the presence of an oil leak was now clear, the exact point where the oil was escaping had not yet been identified. To move the investigation forward, a more focused inspection of the rear underside was required to determine the source of the leak before any repair work could be planned.
BMW Differential Oil Leak: Isolating the Source of the Oil Leak
Rechecking the Rear of the Vehicle Under Clean Conditions
With the earlier checks complete, the next step was to determine precisely where the oil was escaping from. On a BMW M40i, oil doesn’t always show up directly beneath the failed part. As the vehicle is driven, oil can move across housings and underbody surfaces before it becomes visible, which makes a controlled inspection essential.
To allow this, the rear underside of the BMW was cleaned thoroughly. Removing existing oil residue made it possible to distinguish between oil that had already spread and any new oil appearing during reassessment. Once cleaned, the vehicle was inspected again, focusing on where fresh oil began to form.
Reducing the Possible Leak Locations
With a clean baseline established, attention remained on the rear of the drivetrain. At this stage, several areas could reasonably explain the oil pattern that had been seen earlier. These included the differential casing, the points where the drive shafts connect to the unit, and the front of the differential where the prop shaft enters.
Each area was checked in turn. The differential casing showed no signs of oil escaping along its sealing surfaces. The output points where the drive shafts connect were also dry, with no indication that oil was migrating from those locations. Working through each area in sequence helped reduce the possible sources of the leak.
Identifying Where the Oil Was Escaping
As the inspection continued, fresh oil began to appear consistently at the front of the differential, concentrated around the prop shaft input area. This behaviour differed from the other locations that had already been checked and allowed the focus to narrow further.
Attention then turned to the rear differential input shaft oil seal. This seal is responsible for keeping oil inside the differential while allowing the input shaft to rotate continuously under load. When it begins to fail, oil can escape from this point and spread across surrounding components.
Further checks confirmed this was the source of the oil loss. Oil was tracking from the input shaft area, with no signs of leakage elsewhere on the differential. The oil level and condition were also reviewed, confirming that the BMW differential oil leak had been identified before any wider issues had developed.
With the source of the oil leak now isolated, the next step was to plan the BMW M40i repair.
Rear Differential Seal Replacement on a BMW M40i
Before any work began, the findings were discussed with Mrs P so she understood what had been identified and what would be required to resolve the oil loss. Once the repair approach had been agreed, the BMW M40i was prepared for the next stage of work.
The repair was carried out in a series of controlled steps.
Preparing for the BMW Oil Leak Repair
BMW manufacturer repair information was reviewed to confirm the correct method for replacing the rear differential input shaft oil seal on this model. Referring to this information ensures the repair follows BMW’s specified procedure from start to finish.
This preparation stage included:
- Confirming the correct replacement oil seal for the BMW M40i repair
- Reviewing the specified fitting method and tightening values
- Preparing the specialist BMW tooling required for the job
Careful preparation at this stage helps reduce the risk of issues during reassembly.
Accessing the Differential Input Area
The BMW was positioned to allow safe access to the rear of the vehicle. From there, access was gained to the front of the rear differential, where the prop shaft connects to the unit.
This stage involved:
- Reaching the prop shaft connection to expose the input shaft area
- Removing only the components required to access the oil seal
- Maintaining correct alignment of surrounding parts throughout
Limiting unnecessary removal helps keep the repair focused and controlled.
Removing the Faulty Oil Seal
With access established, the rear differential input shaft oil seal was removed carefully. The surrounding area and sealing surfaces were inspected again to ensure there were no other sources of oil loss that could affect the outcome of the repair.
These checks confirmed that:
- Oil was escaping only from the input shaft seal
- The differential casing and output areas remained dry
- The sealing surfaces were suitable for refitting
Rear Differential Seal Replacement
A BMW-approved replacement oil seal was installed in the correct position. Care was taken to ensure accurate alignment, allowing the seal to retain oil within the differential while accommodating continuous rotation of the input shaft.
Correct installation at this stage is essential to prevent oil loss returning once the vehicle is back in use.
Replacing the Differential Oil
As oil had been lost due to the leak, the rear differential oil was replaced using BMW-approved lubricant. The oil was restored to the correct level to ensure the differential could continue to operate as intended.
Reassembly and Inspection
Once the repair work was complete:
- All removed components were refitted following BMW procedures
- Fixings were tightened to the specified values
- The repair area was cleaned to allow a clear visual check
The underside of the BMW was then inspected again to confirm the differential area remained dry. A final inspection was carried out before the vehicle was prepared for return to Mrs P.
BMW M40i Following Rear Differential Oil Leak Repair
After the repair work was completed, the BMW M40i was checked again before being prepared for collection. The rear differential area showed no signs of further oil loss, confirming that the repair had addressed the issue identified during inspection.
Dealing with the oil leak at this stage helped prevent continued oil loss from affecting the differential over time. With the source identified accurately and the correct repair carried out, the vehicle was left in a condition suitable for regular use.
Before the BMW was returned to Mrs P, the underside was inspected once more to confirm the repair area remained clean and dry. The vehicle was then ready to be collected, with the oil leak resolved and no further signs of leakage present.
Specialist Support for BMW Oil Leak Diagnosis and Repair
Oil leaks on BMW vehicles aren’t always straightforward, particularly when there’s little change in how the car drives. Identifying the source accurately is key to resolving the issue properly and avoiding further problems developing over time.
At RS Autotechnik, we focus on careful diagnosis before any repair work is considered. By taking the time to investigate oil leaks thoroughly, we’re able to explain what’s been found and carry out the appropriate repair with confidence.
We support BMW owners across Dursley, Bristol, Tetbury, and Gloucester, providing:
- BMW-focused fault investigation carried out by experienced technicians
- Access to manufacturer repair data and specialist BMW tooling
- Clear explanations before any work is carried out
- A 12-month parts and labour guarantee
The feedback we receive reflects this approach, with {{average-rating}} stars shown across {{review-count}} Google reviews from customers who value clear communication and accurate repairs.
If you’ve noticed oil beneath your BMW or suspect a developing leak, call 01453 796345 to book your vehicle in with RS Autotechnik, your local BMW specialist garage.
