Volkswagen Golf Transmission Fault
You expect your car to change gear without a second thought. So when that routine suddenly breaks down, the concern is immediate.
Mr O’s 2020 Volkswagen Golf had started behaving very differently. A transmission fault warning had appeared on the dashboard, and alongside it, the gearbox was shifting in ways it never had before. Certain gears were being missed entirely, and the shifts that did happen felt rough and unreliable.
The change had come from nowhere. There had been no signs leading up to it, no recent work on the vehicle, and nothing to explain the sudden shift in behaviour. Mr O didn’t know whether it was safe to keep driving, whether the problem would escalate, or what was actually wrong.
Mr O contacted RS Autotechnik, Dursley, wanting a team he could trust to get to the bottom of it. The symptoms were clearly pointing to a Volkswagen Golf transmission fault that called for a thorough investigation and a reliable repair.
He needed specialists with genuine diagnostic expertise and access to the right technical resources to identify the fault and carry out a lasting fix.
Mr O arranged to have the Golf assessed at RS Autotechnik without delay.
Our Initial Evaluation of the Volkswagen Golf
At RS Autotechnik, Dursley, our technicians opened the process with a detailed conversation with Mr O about the issues he had noticed. We asked when the transmission warning had first appeared, how the gear changes had been affected since, and whether factors such as speed, temperature, or trip duration seemed to play a role.
This kind of context is something equipment alone can’t provide. It gives our technicians insight into how the fault behaves in the real world and helps shape a more targeted diagnostic approach from the outset.
A road test was then carried out to confirm the symptoms under driving conditions. Manufacturer-level diagnostic equipment was connected for the full duration, capturing serial data from the transmission control module as the vehicle was driven. Our technicians were able to monitor the transmission’s behaviour in real time, watching exactly how the system responded when the fault occurred.
A full system scan ran alongside the road test, returning a stored fault code directly linked to the Volkswagen Golf transmission fault:
- P1736 00 — Position sensor for clutch 2, electrical malfunction. Active.
This confirmed that the transmission control module had registered an electrical fault with one of the internal sensors responsible for clutch monitoring. But a thorough transmission warning light diagnosis doesn’t end with identifying a code. What counts is understanding the component-level failure that the code is flagging.
Our technicians needed to dig deeper into what the Volkswagen P1736 fault code was telling them before any decisions about repair could be made.
What Was Causing the Volkswagen Golf Transmission Fault?
The scan had flagged fault code P1736, directing attention to an electrical malfunction with the position sensor for clutch 2. That was a useful starting point, but not an answer in itself. Our technicians needed to confirm precisely what had gone wrong and why before the correct repair for this Volkswagen Golf transmission fault could be confirmed. Each relevant area was tested in turn, following a structured diagnostic path to reach a conclusion backed by solid evidence.
Step 1: Consulting manufacturer technical data
Our technicians accessed Volkswagen’s technical information service to review the system-level operation of the transmission fitted to Mr O’s Golf.
The 2020 Golf was equipped with a seven-speed Direct Shift Gearbox (DSG), a dual-clutch transmission used widely across the Golf range. Two separate clutches operate within the system: clutch 1 operates across odd gears (1, 3, 5, 7) and clutch 2 operates across even gears (2, 4, 6, and reverse). Gear selection and clutch engagement are controlled by a mechatronic unit, which combines the transmission control unit (TCU) with a hydraulic valve body in a single integrated assembly.
Clutch position in this transmission is not measured by an external sensor mounted separately. The mechatronic unit houses its own internal pressure sensors, which feed the data the system uses for clutch control. Clutch position is then calculated from those pressure values. When fault code P1736 references “position sensor for clutch 2,” it is identifying this integrated pressure sensor within the mechatronic unit.
With that confirmed, our technicians knew the fault was very likely internal to the mechatronic unit and not related to any component on the outside.
Step 2: Checking for technical service bulletins
Our technicians checked for technical service bulletins (TSBs) associated with the specific diagnostic trouble code (DTC) and the symptoms Mr O had reported.
- A bulletin was identified that related directly to the fault code and the symptoms Mr O had described
- It recognised this as a known issue with DQ381 transmissions, traced to deterioration of the integrated pressure sensors inside the mechatronic unit
- The bulletin outlined that as these sensors wear or drift beyond their calibrated range, the TCU receives inaccurate pressure data and miscalculates clutch position, causing erratic transmission behaviour and incorrect gear engagement
This aligned with what the Volkswagen P1736 fault code had suggested, but our technicians still needed to verify the fault through direct measurement before any repair could go ahead.
Step 3: Serial data analysis at rest
With the vehicle stationary, the engine off, and the ignition on, our technicians measured pressure values for both clutches using manufacturer-level diagnostic equipment.
- A transmission functioning correctly should show both clutch pressure readings sitting as close to 0.00 bar as possible under these conditions
- The clutch 2 pressure value was noticeably outside the expected range, consistent with a sensor that had shifted beyond its calibrated tolerance
- The clutch 1 pressure value was within normal limits, confirming the fault was restricted to the clutch 2 circuit
The pressure data confirmed the Volkswagen P1736 fault code and aligned with Mr O’s experience on the road. The even-numbered gears were the ones being affected, exactly as a clutch 2 sensor fault would produce.
Step 4: Visual inspection
Our technicians carried out a visual inspection of the mechatronic unit’s exterior, the wiring harness, and all connectors, checking for physical damage, corrosion, or connection faults.
- No external issues were identified, ruling out any cause outside the mechatronic unit
The conclusion

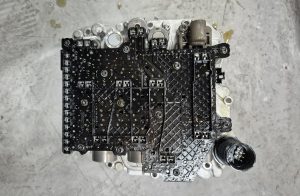

The structured diagnostic process had produced a clear result. The Volkswagen P1736 fault code traced directly to the integrated pressure sensor for clutch 2, located on the TCU circuit board within the mechatronic unit. This sensor had drifted out of specification and was no longer feeding accurate hydraulic pressure data to the TCU for the clutch 2 sub-transmission. The consequence was that the TCU miscalculated clutch position, leading to incorrect engagement of the even-numbered gears.
Because this sensor is integrated into the mechatronic assembly, a standalone replacement is not possible. The full mechatronic unit required replacement.
Replacing the Mechatronic Unit to Restore Gearbox Function
The diagnosis left no ambiguity about what was needed. Our technicians walked Mr O through the findings and explained the repair in detail. He was happy to go ahead, and work commenced immediately.

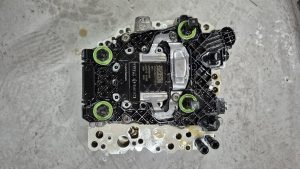

Mechatronic unit replacement
- Transmission oil was drained and the mechatronic unit was accessed after removing the transmission oil pan and associated components
- The faulty mechatronic unit was carefully disconnected and removed
- The replacement unit was fitted into position, with all electrical connections, mounting points, and seals verified to ensure precise fitment
- Fresh transmission oil was filled to the correct Volkswagen specification, in accordance with manufacturer procedure
Calibration and adaptation
- A calibration and adaptation procedure was carried out using manufacturer-level diagnostic software. After mechatronic replacement, this procedure is essential, as it allows the new TCU to adjust its operation to match the existing wear profile of the transmission and clutch components
- All stored fault codes were cleared
Post-repair road test
- The Golf was driven on a structured road test, providing the conditions necessary for the transmission to complete its clutch adaptation during real driving
- Our technicians monitored throughout, confirming that every gear engaged correctly, no faults were skipped, and no new codes were logged
A Lasting Repair, Delivered
The Volkswagen gearbox mechatronic repair restored full transmission function, bringing the Volkswagen Golf transmission fault to a complete resolution. What Mr O got back was a gearbox that selected every gear cleanly, shifted without hesitation, and showed no trace of the warning that had brought the car in.
RS Autotechnik’s structured technical evaluation identified the root cause on the first visit and led directly to the correct repair. The automatic transmission fault repair was completed to manufacturer standards, using the same technical data and equipment available at a main dealership, without the premium that comes with a main dealer visit. A complimentary courtesy car was available throughout, keeping Mr O mobile while the repair was completed.
Mr O collected his Golf from RS Autotechnik with its gearbox restored and the confidence that the fault had been properly addressed.
