P2681 Fault Code
Picture this: your car starts normally, drives smoothly, and feels exactly the way it should. Then you notice an amber glow on the dashboard that wasn’t there before.
An engine management light, with absolutely no explanation as to why it’s appeared.
That’s what Mr N was faced with when his Volkswagen Golf GTI developed an unexplained engine management light (EML). His car hadn’t changed in how it drove or sounded, and there was nothing recent that could account for it.
Rather than ignore it, Mr N wanted the fault properly identified by a garage with the right knowledge and equipment. He chose our VW specialists at RS Autotechnik, Dursley.
In this article, you’ll find out how our team undertook a thorough investigation, traced the source of the warning light, completed the repair, and got his Golf GTI back to full working order.
Checking the Golf GTI Engine Management Light
When Mr N brought his Golf GTI to RS Autotechnik, Dursley, our Volkswagen experts began where every thorough investigation starts: by listening to the driver.
Mr N explained that his vehicle’s engine management light had illuminated with no prior warning. The Golf GTI was still driving as it should, with no noticeable symptoms or changes in performance. There had been no recent repairs or alterations to the vehicle, and he could point to nothing else.
This kind of information is a crucial starting point for any investigation. What the driver has experienced, combined with what hasn’t changed, provides our team with a solid foundation to guide their assessment without making assumptions.
With that understanding, our technicians carried out the initial checks:
- A visual inspection was undertaken to check for any signs of damage, displaced components, or loose connections.
- A full fault code scan was carried out using Volkswagen manufacturer-level diagnostic software to detect any stored or active codes.
Nothing of note was found during the visual inspection. The fault code scan, however, brought up one notable code:
- P2681 00, Engine Coolant Bypass Valve Control Circuit Open.

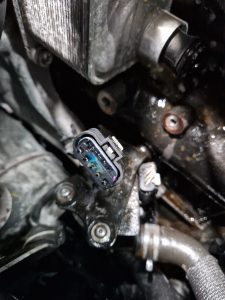

This indicated to our experts that the engine control unit had picked up a fault in the electrical circuit controlling the VW Golf GTI coolant bypass valve. This component forms part of the vehicle’s cooling system.
A Volkswagen P2681 fault code indicates that the engine management system has detected a fault, but it doesn’t explain what is behind it. The cause could lie within the valve, the wiring, a connector, or another part of the circuit.
To uncover the root cause of the VW Golf GTI coolant bypass valve issue, our team needed to take the investigation further.
Diagnosing the Source of the Golf GTI’s P2681 Fault Code
Having confirmed the P2681 fault code, our team’s next step was to determine the exact cause of the Golf GTI cooling system fault.
While a fault code identifies the area where the system has registered an issue, uncovering the real root cause requires a structured and thorough approach.
Our Volkswagen experts started by accessing the official Volkswagen technical information software. This gave our team access to manufacturer data, including wiring diagrams, known faults, and component details specific to the VW Golf GTI coolant bypass valve and the circuit it connects to.
While working through this data, our experts found a documented concern from Volkswagen that closely aligned with the symptoms displayed by this Golf GTI.
Drawing on everything gathered, our team assembled a structured test plan:
- Activate the coolant bypass valve using the manufacturer software, commanding it to operate and recording how it responded.
- Consult Volkswagen wiring diagrams to map out the valve’s entire electrical circuit.
- Use an oscilloscope to analyse the signal quality and wiring condition across the coolant bypass valve circuit.
When our VW specialists used the VW software to command the coolant bypass valve to respond, it remained completely inactive. This indicated the valve wasn’t operating as expected, meaning the circuit needed deeper investigation.
To determine whether the Golf GTI cooling system fault originated in the valve or the wiring, our experts connected an oscilloscope, a precision instrument for measuring electrical signals, and directly assessed the circuit.
The results were definitive: the valve had failed internally, preventing the circuit from functioning as it should. Our experts confirmed that this electrical fault had disrupted the control circuit and was directly behind the Volkswagen P2681 fault code.
The finding clarified why the engine control unit had flagged the fault. The valve’s circuit had moved beyond its expected operating limits, and the ECU had responded by activating the engine management light.
With the root cause confirmed through a detailed VW coolant system diagnosis, our team were ready to get in touch with Mr N and discuss what was needed to resolve the engine coolant bypass valve failure.
Replacing the Golf GTI’s Failed Coolant Bypass Valve
Once the root cause of the Volkswagen P2681 fault code had been established, our expert technicians reached out to Mr N to go through the findings.
We explained that the VW Golf GTI coolant bypass valve had failed internally, which was why the engine management light had appeared. We also outlined why replacing the valve was essential to restore correct cooling system operation and resolve the Volkswagen P2681 fault code.
At RS Autotechnik, Dursley, no repair goes ahead until you understand the issue fully and have given your say-so. You remain in control from start to finish.
Mr N was happy that the cause had been pinpointed and gave our team the green light to proceed with the repair.
Our Volkswagen specialists then undertook the replacement in accordance with VW’s approved procedures.

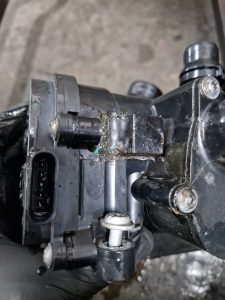

The failed coolant bypass valve was removed, and a new valve meeting the manufacturer’s specifications was fitted to restore the VW Golf GTI cooling system to correct working order. The associated wiring and connections were inspected and tested to ensure the control circuit was intact and free from any further faults.
With the replacement VW Golf GTI coolant bypass valve in position and fully connected, the cooling system was ready for final confirmation checks to ensure the fault had been fully resolved.
Post-Repair Checks: Confirming the Golf GTI Cooling Fault Was Resolved
With the new VW Golf GTI coolant bypass valve in place, our specialists ran a detailed series of checks to confirm the Volkswagen P2681 fault code had been fully resolved and that the vehicle’s cooling system was functioning as the manufacturer intended.
Our team carried out the following confirmation steps:
- Cleared all stored fault codes using VW manufacturer-level diagnostic equipment.
- Conducted active testing of the new coolant bypass valve, commanding it to operate and ensuring it responded correctly.
- Performed a full system scan to verify that no further fault codes had been logged.
- Monitored live data to confirm the cooling system and bypass valve were performing within expected parameters.
The confirmation checks established that the coolant bypass valve repair had been successfully completed. The VW Golf GTI coolant bypass valve was operating correctly, the engine management light remained off after testing, and no additional faults were present.
By diagnosing and resolving the engine coolant bypass valve failure at an early stage, the issue was prevented from developing into a more significant and costly problem.
Once our team had confirmed the results, they rang Mr N to let him know his Golf GTI was ready for collection. He was pleased with the outcome, the level of expertise from our VW specialists, and the prompt turnaround, all at a better value than a main dealership.
Mr N collected his VW Golf GTI from RS Autotechnik, Dursley, with full confidence that the issue had been correctly diagnosed, repaired, and confirmed.
